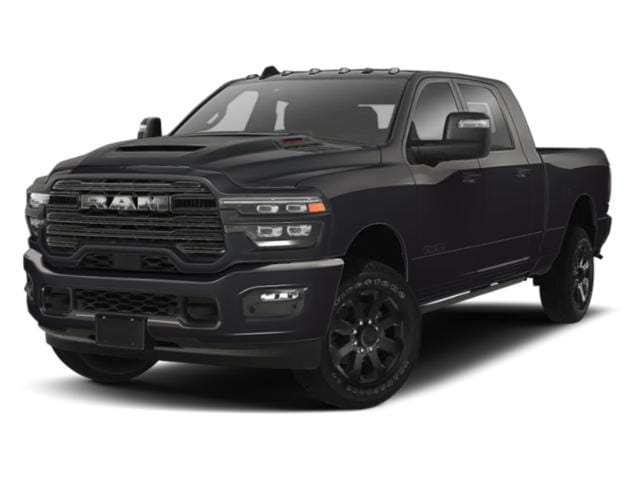

2025 Ram 3500
$46,570 - $91,860Starting MSRP

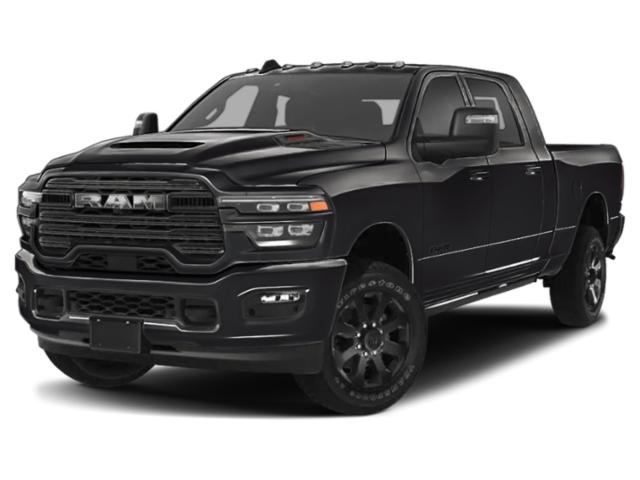

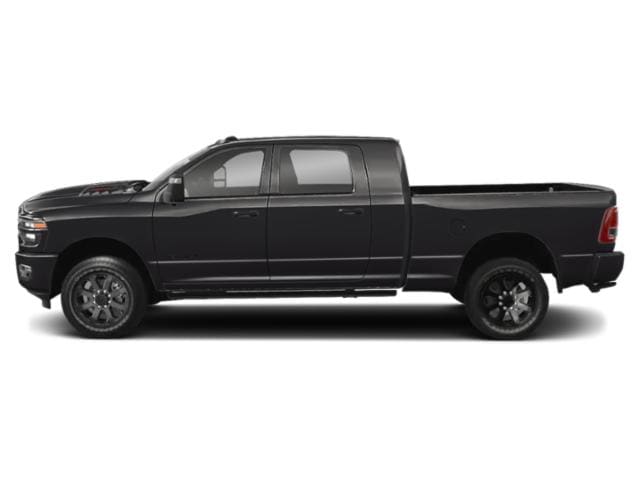

Diamond Black Crystal Pearlcoat
Model Highlights
Transmission
Automatic w/OD
Body Type
Truck
Seatings
5 Seats
Build Your Own 2025 Ram 3500
Looking for alternatives to the Ram 3500?
Start Comparing NowColors
Exterior
Diamond Black Crystal Pearlcoat
Forged Blue Metallic
Ceramic Gray Clearcoat
Granite Crystal Metallic Clearcoat
Delmonico Red Pearlcoat
Billet Silver Metallic Clearcoat
Silver Zynith
Bright White Clearcoat
Specs
Engine Order Code: ESL
Engine Type: Regular Unleaded V-8
Displacement: 6.4 L/392
Fuel System: Sequential MPI
SAE Net Horsepower @ RPM: 405 @ 5600
SAE Net Torque @ RPM: 429 @ 4000
Engine Oil Cooler: None
Drivetrain: Four Wheel Drive
Trans Order Code: DFX
Trans Type: 8
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.71
Second Gear Ratio (:1): 3.14
Third Gear Ratio (:1): 2.11
Fourth Gear Ratio (:1): 1.67
Fifth Gear Ratio (:1): 1.28
Sixth Gear Ratio (:1): 1.00
Reverse Ratio (:1): 3.29
Trans PTO Access: No
Transfer Case Model: Electronic
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 0.84
Eighth Gear Ratio (:1): 0.67
Cold Cranking Amps @ 0° F (Primary): 730
Cold Cranking Amps @ 0° F (2nd): 730
Maximum Alternator Capacity (amps): 220
Gross Axle Wt Rating - Front (lbs): 5500
Gross Axle Wt Rating - Rear (lbs): 7000
Gross Vehicle Weight Rating Cap (lbs): 11440
Suspension Type - Front: Multi-Link
Suspension Type - Rear: Leaf
Axle Type - Front: Non-Independent
Axle Type - Rear: Rigid Axle
Axle Ratio (:1) - Front: 3.73
Axle Ratio (:1) - Rear: 3.73
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 14.2
Rear Brake Rotor Diam x Thickness (in): 14.1
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: TEA
Rear Tire Order Code: TEA
Spare Tire Order Code:
Front Tire Size: LT285/60SR20
Rear Tire Size: LT285/60SR20
Spare Tire Size: Full-Size
Front Tire Capacity (lbs): 7280
Rear Tire Capacity (lbs): 7280
Front Wheel Size (in): 20 X 8
Rear Wheel Size (in): 20 X 8
Spare Wheel Size (in): Full-Size
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Re-Circulating Ball
Turning Diameter - Curb to Curb (ft): 53.7
Fuel Tank Capacity, Approx (gal): 32
Wheelbase (in): 169.5
Length, Overall (in): 260.8
Width, Max w/o mirrors (in): 79.4
Height, Overall (in): 78.4
Ground Clearance, Front (in): 7.3
Ground Clearance, Rear (in): 7.3
Cargo Box Length @ Floor (in): 98.3
Cargo Box Width @ Top, Rear (in): 66.4
Cargo Box Width @ Floor (in): 66.4
Cargo Box Width @ Wheelhousings (in): 51
Cargo Box (Area) Height (in): 20.2
Tailgate Width (in): 60.4
Cargo Volume (ft³): 74.9
Passenger Capacity: 5
Front Head Room (in): 40.9
Front Leg Room (in): 40.9
Front Shoulder Room (in): 65.9
Front Hip Room (in): 62.9
Second Head Room (in): 39.8
Second Leg Room (in): 40.2
Second Shoulder Room (in): 65.6
Second Hip Room (in): 62.7
Vehicle Name: Ram 3500
Body Style: Crew Cab
Body Code: T
Pricing
This model has 33 different trims.
MSRP
$77,950
Invoice
$73,625
Description
6.4 L/392, 405 @ 5600, Automatic w/OD
Fuel Economy
This model has 33 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
6.4 L/392, 405 @ 5600, Automatic w/OD
