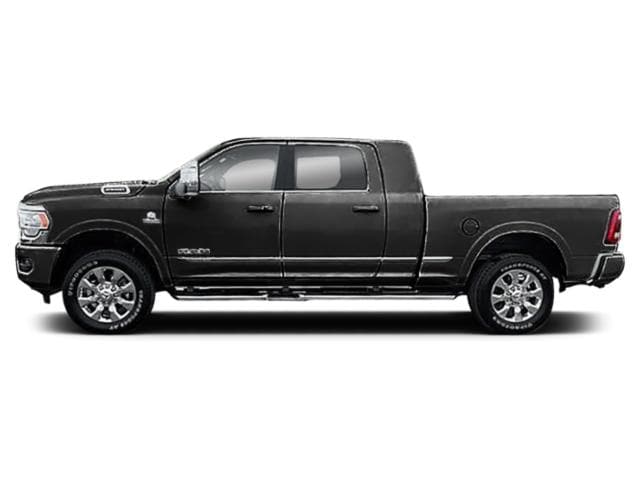

2024 Ram 2500
$45,250 - $77,235Starting MSRP
Diamond Black Crystal Pearlcoat
Model Highlights
Transmission
Automatic w/OD
Body Type
Truck
Seatings
5 Seats
Overview
The 2024 HD Ram comes in Tradesman, Bighorn, Laramie, Power Wagon, Limited Longhorn, Limited and the new to the 2024 lineup is the Rebel. Ram's powerful 2500 and 3500 Heavy-Duty trucks return for 2024 with more to like than ever before? A 6-speed...
Build Your Own 2024 Ram 2500
What’s new in the 2024 model?
The Ram 2500 and 3500 both carry over with minimal changes for 2024.
Looking for alternatives to the Ram 2500?
Start Comparing NowColors
Exterior
Diamond Black Crystal Pearlcoat
Patriot Blue Pearlcoat
Granite Crystal Metallic Clearcoat
Delmonico Red Pearlcoat
Billet Silver Metallic Clearcoat
Bright White Clearcoat
Pearl White
Specs
Engine Order Code: ETL
Engine Type: Intercooled Turbo Diesel I-6
Displacement: 6.7 L/408
Fuel System: Diesel Direct Injection
SAE Net Horsepower @ RPM: 370 @ 2800
SAE Net Torque @ RPM: 850 @ 1700
Engine Oil Cooler: None
Drivetrain: Four Wheel Drive
Trans Order Code: DG7
Trans Type: 6
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 3.23
Second Gear Ratio (:1): 1.84
Third Gear Ratio (:1): 1.41
Fourth Gear Ratio (:1): 1.00
Fifth Gear Ratio (:1): 0.82
Sixth Gear Ratio (:1): 0.62
Reverse Ratio (:1): 4.44
Trans PTO Access: No
Transfer Case Model: Electronic
Transfer Case Power Take Off: No
Cold Cranking Amps @ 0° F (Primary): 730
Cold Cranking Amps @ 0° F (2nd): 730
Maximum Alternator Capacity (amps): 180
Base Curb Weight (lbs): 7224
Gross Axle Wt Rating - Front (lbs): 5500
Gross Axle Wt Rating - Rear (lbs): 6390
Curb Weight - Front (lbs): 4172
Curb Weight - Rear (lbs): 3052
Gross Vehicle Weight Rating Cap (lbs): 10000
Gross Combined Wt Rating (lbs): 22000
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 14400
Wt Distributing Hitch - Max Tongue Wt. (lbs): 1440
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14230
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3557
Maximum Trailering Capacity (lbs): 14400
Suspension Type - Front: Multi-Link
Suspension Type - Rear: Multi-Link
Axle Type - Front: Non-Independent
Axle Type - Rear: Rigid Axle
Axle Capacity - Front (lbs): 5250
Axle Capacity - Rear (lbs): 6010
Axle Ratio (:1) - Front: 3.73
Axle Ratio (:1) - Rear: 3.73
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 14.2
Rear Brake Rotor Diam x Thickness (in): 14.1
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: TEA
Rear Tire Order Code: TEA
Spare Tire Order Code:
Front Tire Size: LT285/60SR20
Rear Tire Size: LT285/60SR20
Spare Tire Size: Full-Size
Front Tire Capacity (lbs): 7280
Rear Tire Capacity (lbs): 7280
Front Wheel Size (in): 20 X 8
Rear Wheel Size (in): 20 X 8
Spare Wheel Size (in): Full-Size
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Re-Circulating Ball
Turning Diameter - Curb to Curb (ft): 51.2
Fuel Tank Capacity, Approx (gal): 31
Wheelbase (in): 160.5
Length, Overall (in): 249.9
Width, Max w/o mirrors (in): 79.5
Height, Overall (in): 80.1
Ground Clearance, Front (in): 8.5
Ground Clearance, Rear (in): 8.5
Cargo Box Length @ Floor (in): 76.3
Cargo Box Width @ Top, Rear (in): 66.4
Cargo Box Width @ Floor (in): 66.4
Cargo Box Width @ Wheelhousings (in): 51
Cargo Box (Area) Height (in): 20.1
Tailgate Width (in): 60.4
Cargo Volume (ft³): 57.5
Passenger Capacity: 5
Front Head Room (in): 40.9
Front Leg Room (in): 40.9
Front Shoulder Room (in): 65.9
Front Hip Room (in): 62.9
Second Head Room (in): 40.3
Second Leg Room (in): 43.1
Second Shoulder Room (in): 65.6
Second Hip Room (in): 62.8
Vehicle Name: Ram 2500
Body Style: Mega Cab
Body Code: T
Pricing
This model has 31 different trims.
MSRP
$77,235
Invoice
$72,948
Description
6.7 L/408, 370 @ 2800, Automatic w/OD
Fuel Economy
This model has 31 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
6.7 L/408, 370 @ 2800, Automatic w/OD
