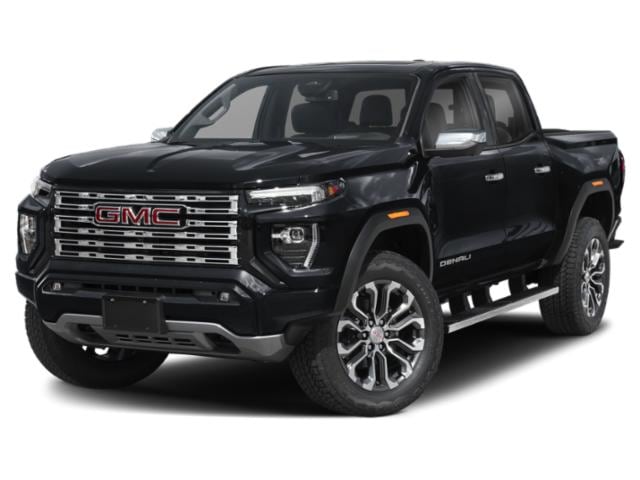

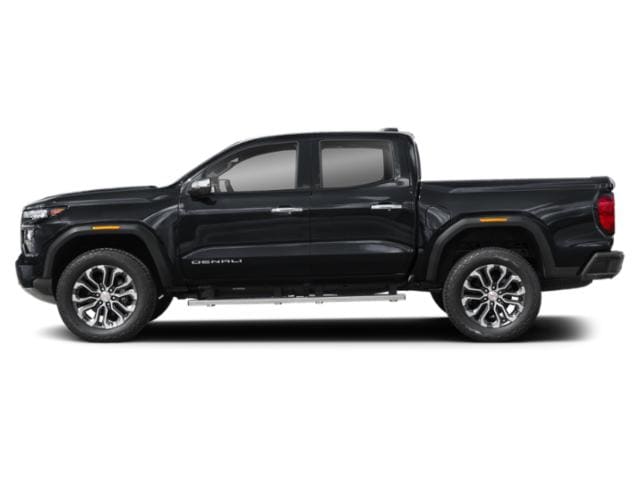

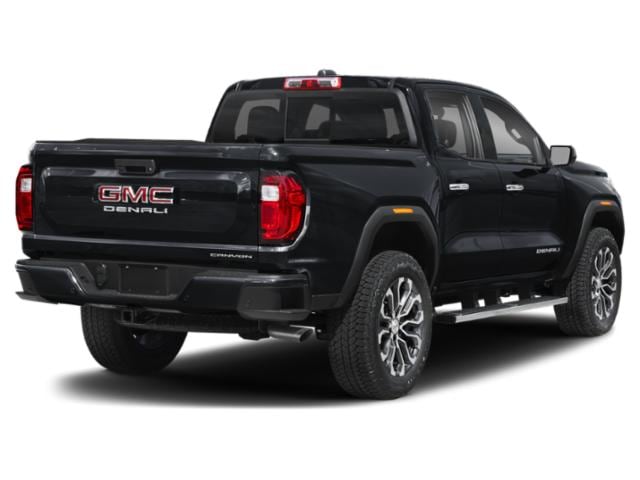

2025 GMC Canyon
$38,400 - $52,000Starting MSRP
Onyx Black
Model Highlights
Fuel Economy
19 MPG Comb.
Transmission
Automatic
Body Type
Truck
Seatings
5 Seats
Overview
The GMC Canyon is powered by a 2.7L turbocharged four-cylinder engine mated to an 8-speed automatic transmission with 310 horsepower. The 2025 Canyon is available in four-wheel drive with three trims Elevation, AT4, and Danali while the 4x2 model...
Build Your Own 2025 GMC Canyon
What’s new in the 2025 model?
The GMC Canyon drops the AT4X trim for 2025 but otherwise carries over with minimal changes.
Looking for alternatives to the GMC Canyon?
Start Comparing NowColors
Exterior

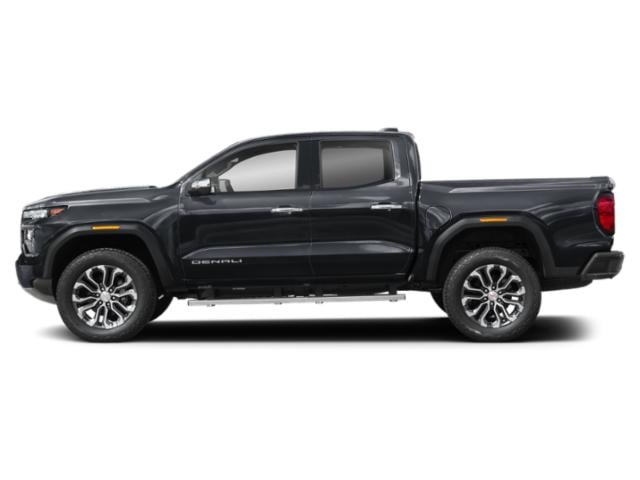

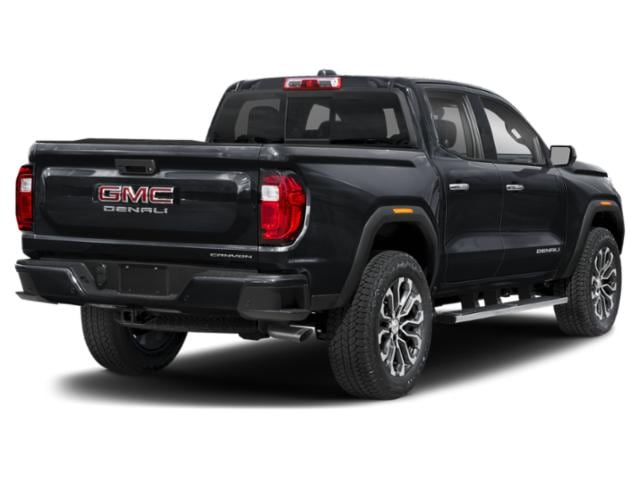

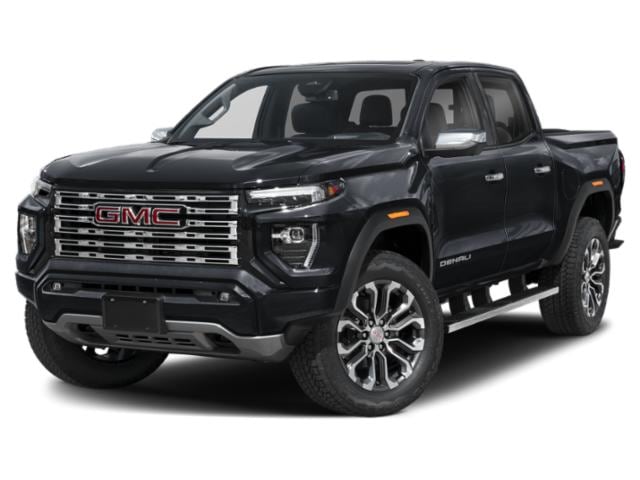

Onyx Black
Deep Bronze Metallic
Sterling Metallic
Volcanic Red Tintcoat
Glacier Metallic
Summit White
Specs
Engine Order Code: L3B
Engine Type: Turbocharged Gas I4
Displacement: 2.7L/- TBD -
Fuel System: Direct Injection
SAE Net Horsepower @ RPM: 310 @ 5600
SAE Net Torque @ RPM: 430 @ 3000
Engine Oil Cooler: - TBD -
Drivetrain: Four Wheel Drive
Trans Order Code: MFC
Trans Type: 8
Trans Description Cont.: Automatic
Trans Description Cont. Again:
First Gear Ratio (:1): 4.56
Second Gear Ratio (:1): 2.97
Third Gear Ratio (:1): 2.08
Fourth Gear Ratio (:1): 1.69
Fifth Gear Ratio (:1): 1.27
Sixth Gear Ratio (:1): 1.00
Seventh Gear Ratio (:1): 0.85
Eighth Gear Ratio (:1): 0.65
Reverse Ratio (:1): 4.56
Clutch Size (in):
Trans Power Take Off:
Trans PTO Access:
Transfer Case Model: Autotrac
Transfer Case Gear Ratio (:1), High: 1
Transfer Case Gear Ratio (:1), Low: - TBD -
Transfer Case Power Take Off: - TBD -
Fuel Economy Est-Combined (MPG): 19
EPA Fuel Economy Est - City (MPG): 17
EPA Fuel Economy Est - Hwy (MPG): 21
Cold Cranking Amps @ 0° F (Primary): 800
Cold Cranking Amps @ 0° F (2nd):
Maximum Alternator Capacity (amps): 220
Maximum Alternator Watts: - TBD -
Total Cooling System Capacity (qts): - TBD -
Gross Axle Wt Rating - Front (lbs): 3500
Gross Axle Wt Rating - Rear (lbs): 3600
Curb Weight - Front (lbs): 2640
Curb Weight - Rear (lbs): 2086
Gross Vehicle Weight Rating Cap (lbs): 6250
Gross Combined Wt Rating (lbs): 13250
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
Wt Distributing Hitch - Max Tongue Wt. (lbs): 770
Fifth Wheel Hitch - Max Trailer Wt. (lbs):
Fifth Wheel Hitch - Max Tongue Wt. (lbs):
Maximum Trailering Capacity (lbs): 7700
Suspension Type - Front: Lifted w/Independent Coil-Over-Shock
Suspension Type - Rear: Lifted w/Semi-Elliptic Two-Stage Multi-Leaf Springs
Spring Capacity - Front (lbs): - TBD -
Spring Capacity - Rear (lbs): - TBD -
Axle Type - Front: - TBD -
Axle Type - Rear: - TBD -
Axle Capacity - Front (lbs): - TBD -
Axle Capacity - Rear (lbs): - TBD -
Axle Ratio (:1) - Front: 3.42
Axle Ratio (:1) - Rear: 3.42
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): - TBD -
Stabilizer Bar Diameter - Rear (in): - TBD -
Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line):
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.4 x - TBD -
Rear Brake Rotor Diam x Thickness (in): 13.3 x - TBD -
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: QAE
Rear Tire Order Code: QAE
Spare Tire Order Code: RMW
Front Tire Size: 275/60R20SL
Rear Tire Size: 275/60R20SL
Spare Tire Size: 275/60R20
Front Tire Capacity (lbs): - TBD -
Rear Tire Capacity (lbs): - TBD -
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: - TBD -
Revolutions/Mile @ 45 mph - Rear: - TBD -
Revolutions/Mile @ 45 mph - Spare: - TBD -
Front Wheel Size (in): 20 x 9
Rear Wheel Size (in): 20 x 9
Spare Wheel Size (in): 20 x 9
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Aluminum
Steering Type: Electric Rack & Pinion
Steering Ratio (:1), On Center: - TBD -
Steering Ratio (:1), At Lock: - TBD -
Turning Diameter - Curb to Curb (ft): - TBD -
Turning Diameter - Wall to Wall (ft): - TBD -
Frame Type: Fully-boxed
Fuel Tank Capacity, Approx (gal): 21.4
Aux Fuel Tank Capacity, Approx (gal):
Fuel Tank Location: - TBD -
Aux Fuel Tank Location:
Wheelbase (in): 131
Length, Overall (in): 213.2
Width, Max w/o mirrors (in): 72.4 w/Mirrors Folded, 84.4 w/Mirrors
Height, Overall (in): 80.4
Overhang, Front (in): 34.5
Overhang, Rear w/o bumper (in): 47.3
Front Bumper to Back of Cab (in): - TBD -
Cab to Axle (in): 23.4
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): - TBD -
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): 10.5
Ground Clearance, Rear (in): 10.5
Cargo Box Length @ Floor (in): 61.7
Cargo Box Width @ Top, Rear (in): - TBD -
Cargo Box Width @ Floor (in): 58.1
Cargo Box Width @ Wheelhousings (in): 45.5
Cargo Box (Area) Height (in): - TBD -
Tailgate Width (in): - TBD -
Cargo Volume (ft³): 41.9
Ext'd Cab Cargo Volume (ft³): - TBD -
Passenger Capacity: 5
Front Head Room (in): 40.3
Front Leg Room (in): 45.2
Front Shoulder Room (in): 57.4
Front Hip Room (in): 54.7
Second Head Room (in): 38.3
Second Leg Room (in): 34.7
Second Shoulder Room (in): 56.1
Second Hip Room (in): 53.1
Vehicle Name: GMC Canyon
Body Style: Crew Cab Pickup
Body Code:
EPA Greenhouse Gas Score: 4
Tons/yr of CO2 Emissions @ 15K mi/year: 8.1
Pricing
This model has 4 different trims.
MSRP
$52,000
Invoice
$49,608
Description
2.7L/- TBD -, 310 @ 5600, Automatic
Fuel Economy
This model has 4 different trims.
City
17 MPG
Hwy
21 MPG
Combined
19 MPG
Description
2.7L/- TBD -, 310 @ 5600, Automatic
