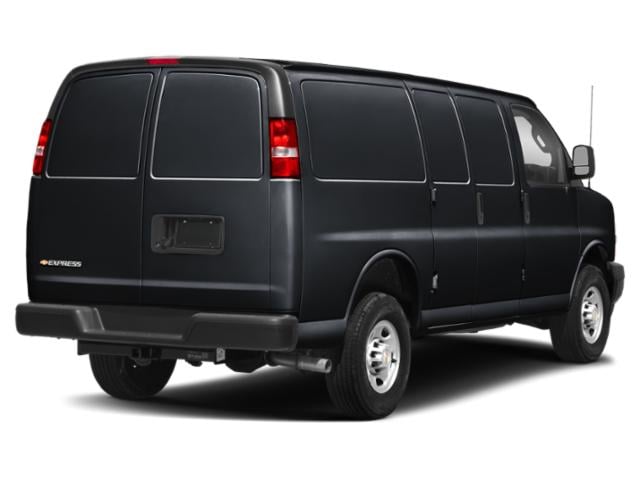

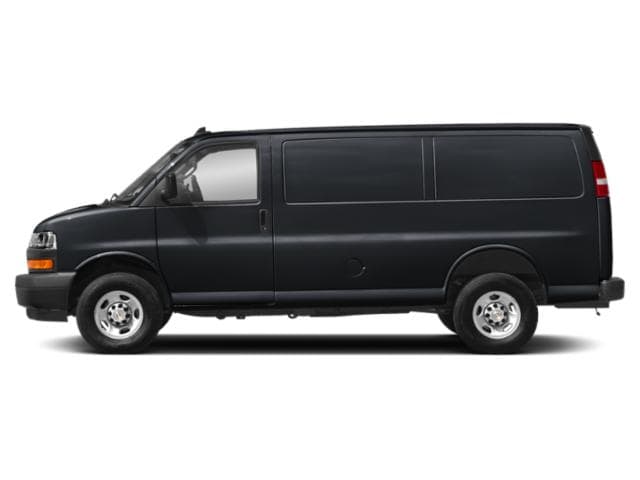

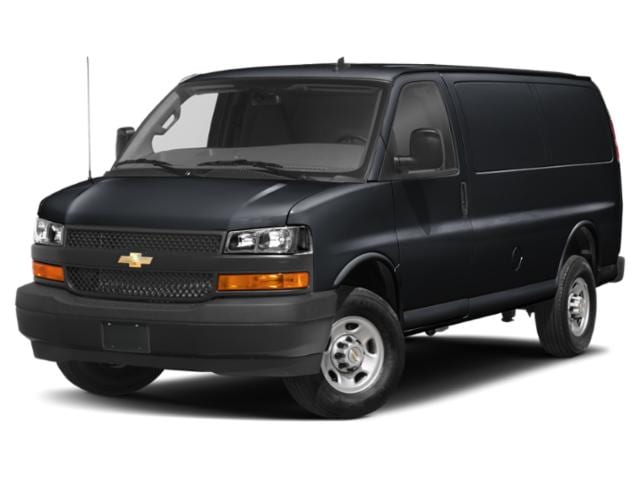

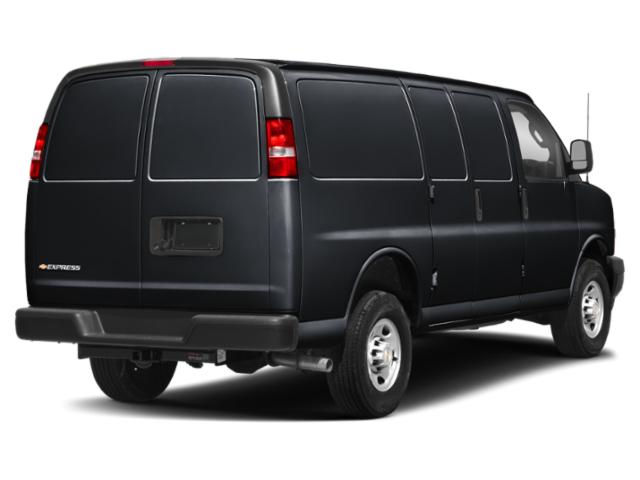

2024 Chevrolet Express Cargo Van
$40,700 - $44,600Starting MSRP
Black
Model Highlights
Transmission
Automatic
Body Type
Van
Seatings
2 Seats
Build Your Own 2024 Chevrolet Express Cargo Van
Looking for alternatives to the Chevrolet Express Cargo Van?
Start Comparing NowColors
Exterior
Black
Red Hot
Silver Ice Metallic
Summit White
Specs
Rear Door Type: Dual Swing-Out
Engine Order Code: LV1
Engine Type: Gas V6
Displacement: 4.3L/- TBD -
Fuel System: Direct Injection
SAE Net Horsepower @ RPM: 276 @ 5200
SAE Net Torque @ RPM: 298 @ 3900
Engine Oil Cooler: Yes
Drivetrain: Rear Wheel Drive
Trans Order Code: MTH
Trans Type: 8
Trans Description Cont.: Automatic
Trans Description Cont. Again:
First Gear Ratio (:1): - TBD -
Second Gear Ratio (:1): - TBD -
Third Gear Ratio (:1): - TBD -
Fourth Gear Ratio (:1): - TBD -
Fifth Gear Ratio (:1): - TBD -
Sixth Gear Ratio (:1): - TBD -
Seventh Gear Ratio (:1): - TBD -
Eighth Gear Ratio (:1): - TBD -
Reverse Ratio (:1): - TBD -
Clutch Size (in):
Trans Power Take Off:
Trans PTO Access:
Transfer Case Model:
Transfer Case Gear Ratio (:1), High:
Transfer Case Gear Ratio (:1), Low:
Transfer Case Power Take Off:
Fuel Economy Est-Combined (MPG):
EPA Fuel Economy Est - City (MPG):
EPA Fuel Economy Est - Hwy (MPG):
Cold Cranking Amps @ 0° F (Primary): 600
Cold Cranking Amps @ 0° F (2nd):
Maximum Alternator Capacity (amps): 105
Maximum Alternator Watts: - TBD -
Total Cooling System Capacity (qts): 13.6
Gross Axle Wt Rating - Front (lbs): 4300
Gross Axle Wt Rating - Rear (lbs): 6084
Curb Weight - Front (lbs): 3001
Curb Weight - Rear (lbs): 2328
Gross Vehicle Weight Rating Cap (lbs): 9600
Gross Combined Wt Rating (lbs): 15000
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 7200
Wt Distributing Hitch - Max Tongue Wt. (lbs): 720
Fifth Wheel Hitch - Max Trailer Wt. (lbs):
Fifth Wheel Hitch - Max Tongue Wt. (lbs):
Maximum Trailering Capacity (lbs): 10000
Suspension Type - Front: Coil Spring
Suspension Type - Rear: Hypoid Multi-Leaf
Spring Capacity - Front (lbs): 4300
Spring Capacity - Rear (lbs): 6084
Axle Type - Front: Independent
Axle Type - Rear: Full-Floating
Axle Capacity - Front (lbs): 4300
Axle Capacity - Rear (lbs): 6084
Axle Ratio (:1) - Front:
Axle Ratio (:1) - Rear: 3.42
Shock Absorber Diameter - Front (mm): N/A
Shock Absorber Diameter - Rear (mm): N/A
Stabilizer Bar Diameter - Front (in): 1.38
Stabilizer Bar Diameter - Rear (in):
Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line):
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: XLP
Rear Tire Order Code: YLP
Spare Tire Order Code: ZLP
Front Tire Size: LT245/75R16E
Rear Tire Size: LT245/75R16E
Spare Tire Size: LT245/75R16E
Front Tire Capacity (lbs): 2205
Rear Tire Capacity (lbs): 3042
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: - TBD -
Revolutions/Mile @ 45 mph - Rear: - TBD -
Revolutions/Mile @ 45 mph - Spare: - TBD -
Front Wheel Size (in): 16 x 6.5
Rear Wheel Size (in): 16 x 6.5
Spare Wheel Size (in): 16 x 6.5
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel
Steering Type: Pwr
Steering Ratio (:1), On Center: 17.2
Steering Ratio (:1), At Lock: 17.2
Turning Diameter - Curb to Curb (ft): 54.5
Turning Diameter - Wall to Wall (ft): N/A
Frame Type: Ladder
Fuel Tank Capacity, Approx (gal): 31
Aux Fuel Tank Capacity, Approx (gal):
Fuel Tank Location: Mid-Frame
Aux Fuel Tank Location:
Side Door Type: Swing-Out
Wheelbase (in): 155
Length, Overall (in): 244.05
Width, Max w/o mirrors (in): 79.25
Height, Overall (in): 84.25
Overhang, Front (in): 39.7
Overhang, Rear w/bumper (in): - TBD -
Ground to Top of Load Floor (in): 29.75
Ground Clearance, Front (in): 9.65
Ground Clearance, Rear (in): 8.6
Rear Door Opening Height (in): 47.95
Rear Door Opening Width (in): 53.42
Side Door Opening Height (in): - TBD -
Side Door Opening Width (in): - TBD -
Step Up Height - Front (in): 27.44
Step Up Height - Side (in): 27.9
Cargo Area Length @ Floor to Console (in): 173.65
Cargo Area Length @ Floor to Seat 1 (in): 146.75
Cargo Area Width @ Beltline (in): - TBD -
Cargo Box Width @ Wheelhousings (in): 52.47
Cargo Box (Area) Height (in): 55.08
Cargo Volume (ft³): 283.6
Passenger Capacity: 2
Front Head Room (in): 40.85
Front Leg Room (in): 41.35
Front Shoulder Room (in): 68.85
Front Hip Room (in): 65.47
Vehicle Name: Chevrolet Express Cargo Van
Body Style: Cargo Van
Body Code: ZW9
Tons/yr of CO2 Emissions @ 15K mi/year:
Pricing
This model has 4 different trims.
MSRP
$44,600
Invoice
$41,656
Description
4.3L/- TBD -, 276 @ 5200, Automatic
Fuel Economy
This model has 4 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
4.3L/- TBD -, 276 @ 5200, Automatic
