2024 Volvo XC40
$40,500 - $49,300Starting MSRP
Onyx Black Metallic
Model Highlights
Fuel Economy
26 MPG Comb.
Transmission
Automatic w/OD
Body Type
SUV
Seatings
5 Seats
Overview
The Volvo XC40 comes in six different trims. Each is powered by a turbocharged 4-cylinder engine displacing 2.0L which produces 247 horsepower mated to an 8-speed automatic transmission. With 248 horsepower on tap, the compact SUV is quite quick...
Build Your Own 2024 Volvo XC40
What’s new in the 2024 model?
The Volvo XC40 is no longer offered in the front-wheel drive model but otherwise carries over with minimal changes for 2024.
Looking for alternatives to the Volvo XC40?
Start Comparing NowColors
Exterior

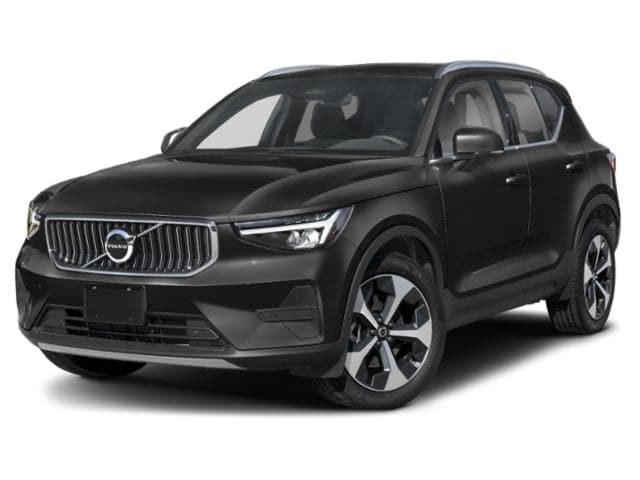

Onyx Black Metallic
Cloud Blue
Fjord Blue Metallic
Bright Dusk Metallic
Silver Dawn Metallic
Vapor Grey Metallic
Sage Green Metallic
Fusion Red Metallic
Crystal White Metallic
Specs
EPA Classification: Small SUV 4WD
Engine Order Code:
Engine Type: Intercooled Turbo Gas/Electric I-4
Displacement: 2.0 L/120
Fuel System: Gasoline Direct Injection
SAE Net Horsepower @ RPM: 247 @ 5500
SAE Net Torque @ RPM: 258 @ 1800
Drivetrain: All Wheel Drive
Trans Order Code:
Trans Type: 8
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 5.06
Second Gear Ratio (:1): 3.07
Third Gear Ratio (:1): 2.05
Fourth Gear Ratio (:1): 1.52
Fifth Gear Ratio (:1): 1.26
Sixth Gear Ratio (:1): 1.00
Reverse Ratio (:1): 3.99
Final Drive Axle Ratio (:1): 3.33
Seventh Gear Ratio (:1): 0.79
Eighth Gear Ratio (:1): 0.66
Fuel Economy Est-Combined (MPG): 26
EPA Fuel Economy Est - City (MPG): 24
EPA Fuel Economy Est - Hwy (MPG): 30
Cold Cranking Amps @ 0° F (Primary): 760
Base Curb Weight (lbs): 3966
Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
Dead Weight Hitch - Max Tongue Wt. (lbs): 350
Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
Maximum Trailering Capacity (lbs): 3500
Suspension Type - Front: Strut
Suspension Type - Rear: Multi-Link
Suspension Type - Front (Cont.): Strut
Suspension Type - Rear (Cont.): Multi-Link
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.6
Rear Brake Rotor Diam x Thickness (in): 11.9
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: P245/45HR20
Rear Tire Size: P245/45HR20
Spare Tire Size: Compact
Front Wheel Size (in): 20 X 8
Rear Wheel Size (in): 20 X 8
Spare Wheel Size (in): Compact
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 37.4
Fuel Tank Capacity, Approx (gal): 14.2
Wheelbase (in): 106.4
Length, Overall (in): 174.8
Width, Max w/o mirrors (in): 75.2
Height, Overall (in): 65.2
Track Width, Front (in): 63
Track Width, Rear (in): 64
Min Ground Clearance (in): 8.3
Liftover Height (in): 29.7
Cargo Area Length @ Floor to Seat 1 (in): 65.7
Cargo Area Length @ Floor to Seat 2 (in): 34.9
Cargo Area Width @ Beltline (in): 41.7
Cargo Box Width @ Wheelhousings (in): 37.3
Cargo Box (Area) Height (in): 29.4
Cargo Volume to Seat 1 (ft³): 57.5
Cargo Volume to Seat 2 (ft³): 16
Passenger Capacity: 5
Front Head Room (in): 37.6
Front Leg Room (in): 40.9
Front Shoulder Room (in): 56.7
Front Hip Room (in): 54.7
Second Head Room (in): 38.3
Second Leg Room (in): 36.1
Second Shoulder Room (in): 56.3
Second Hip Room (in): 54.6
Vehicle Name: Volvo XC40
Body Style: Sport Utility
EPA Greenhouse Gas Score: 5.0
Tons/yr of CO2 Emissions @ 15K mi/year: 6.8
Pricing
This model has 6 different trims.
MSRP
$49,300
Invoice
$47,328
Description
2.0 L/120, 247 @ 5500, Automatic w/OD
Fuel Economy
This model has 6 different trims.
City
24 MPG
Hwy
30 MPG
Combined
26 MPG
Description
2.0 L/120, 247 @ 5500, Automatic w/OD
