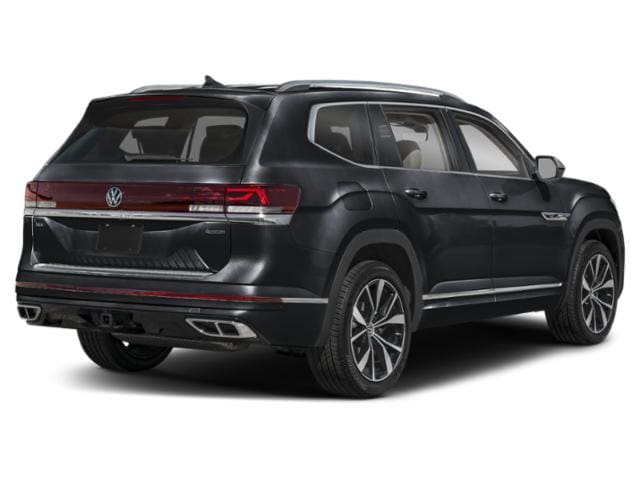

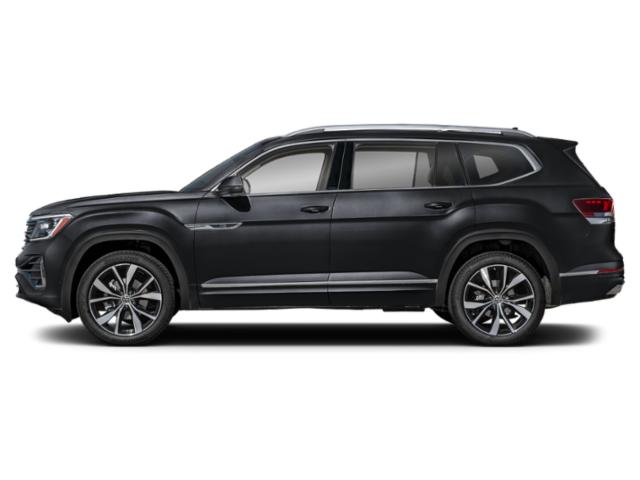

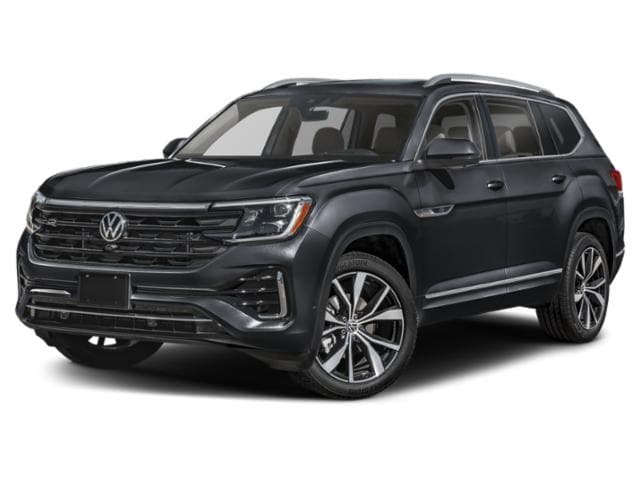

2024 Volkswagen Atlas
$37,995 - $52,890Starting MSRP
Deep Black Pearl
Model Highlights
Fuel Economy
21 MPG Comb.
Transmission
Automatic w/OD
Body Type
SUV
Seatings
7 Seats
Overview
The Volkswagen Atlas is offered in multiple trim levels with different engine configurations: SE, SE w/Technology, SEL, SEL R-Line Black and SEL Premium R-Line. All trims are available in the all-wheel drive model while the front-wheel drive model...
Build Your Own 2024 Volkswagen Atlas
What’s new in the 2024 model?
The refreshed Atlas and Atlas Cross Sport gets a redesigned front end, a more powerful engine, more standard features, and a larger touchscreen for...
Looking for alternatives to the Volkswagen Atlas?
Start Comparing NowColors
Exterior
Deep Black Pearl
Platinum Gray Metallic
Aurora Red Metallic
Silver Mist Metallic
Opal White Pearl
Specs
EPA Classification: Small SUV 4WD
Engine Order Code:
Engine Type: Intercooled Turbo Premium Unleaded I-4
Displacement: 2.0 L/121
Fuel System: Gasoline Direct Injection
SAE Net Horsepower @ RPM: 269 @ 5500
SAE Net Torque @ RPM: 273 @ 1600
Drivetrain: All Wheel Drive
Trans Order Code: PR
Trans Type: 8
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 5.59
Second Gear Ratio (:1): 3.14
Third Gear Ratio (:1): 1.95
Fourth Gear Ratio (:1): 1.43
Fifth Gear Ratio (:1): 1.21
Sixth Gear Ratio (:1): 1.00
Reverse Ratio (:1): 3.99
Final Drive Axle Ratio (:1): 3.60
Seventh Gear Ratio (:1): 0.81
Eighth Gear Ratio (:1): 0.67
Fuel Economy Est-Combined (MPG): 21
EPA Fuel Economy Est - City (MPG): 19
EPA Fuel Economy Est - Hwy (MPG): 25
Base Curb Weight (lbs): 4663
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 5000
Wt Distributing Hitch - Max Tongue Wt. (lbs): 500
Maximum Trailering Capacity (lbs): 5000
Suspension Type - Front: Strut
Suspension Type - Rear: Multi-Link
Suspension Type - Front (Cont.): Strut
Suspension Type - Rear (Cont.): Multi-Link
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.2
Rear Brake Rotor Diam x Thickness (in): 12.2
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: P265/45HR21
Rear Tire Size: P265/45HR21
Spare Tire Size: Compact
Front Wheel Size (in): 21 X 9
Rear Wheel Size (in): 21 X 9
Spare Wheel Size (in): Compact
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 40.5
Fuel Tank Capacity, Approx (gal): 18.6
Wheelbase (in): 117.3
Length, Overall (in): 200.7
Width, Max w/o mirrors (in): 78.3
Height, Overall (in): 70.4
Track Width, Front (in): 67
Track Width, Rear (in): 67.6
Cargo Volume to Seat 1 (ft³): 96.8
Cargo Volume to Seat 2 (ft³): 55.5
Cargo Volume to Seat 3 (ft³): 20.6
Passenger Capacity: 7
Passenger Volume (ft³): 154
Front Head Room (in): 41.3
Front Leg Room (in): 41.7
Front Shoulder Room (in): 61.5
Front Hip Room (in): 58.2
Second Head Room (in): 40.4
Second Leg Room (in): 37.6
Second Shoulder Room (in): 60.8
Second Hip Room (in): 58
Third Head Room (in): 38.3
Third Leg Room (in): 33.7
Third Shoulder Room (in): 54.9
Third Hip Room (in): 45.1
Vehicle Name: Volkswagen Atlas
Body Style: 4MOTION
Tons/yr of CO2 Emissions @ 15K mi/year: 8.5
Pricing
This model has 8 different trims.
MSRP
$52,890
Invoice
$50,721
Description
2.0 L/121, 269 @ 5500, Automatic w/OD
Fuel Economy
This model has 8 different trims.
City
19 MPG
Hwy
25 MPG
Combined
21 MPG
Description
2.0 L/121, 269 @ 5500, Automatic w/OD
