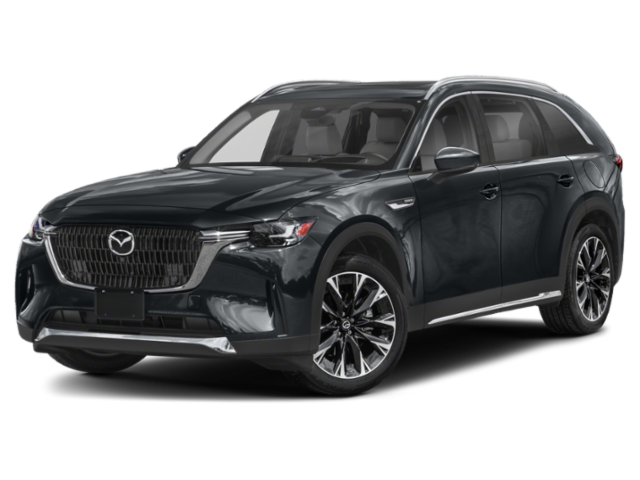

2024 Mazda CX-90 PHEV
$49,945 - $57,450Starting MSRP
Jet Black Mica
Model Highlights
Transmission
Automatic w/OD
Body Type
SUV
Seatings
7 Seats
Overview
The 2024 Mazda CX-90 PHEV comes in three trims: Preferred, Premium and Premium Plus. The CX-90 boasts three rows of seating with room for seven or 8 passengers and it comes with standard all-wheel drive. This mid-size SUV is powered by a 2.5L...
Build Your Own 2024 Mazda CX-90 PHEV
What’s new in the 2024 model?
The Mazda CX-90 PHEV is all-new for 2024.
Looking for alternatives to the Mazda CX-90 PHEV?
Start Comparing NowColors
Exterior
Jet Black Mica
Deep Crystal Blue Mica
Machine Gray Metallic
Artisan Red Premium
Soul Red Crystal Metallic
Sonic Silver
Platinum Quartz
Platinum Quartz
Rhodium White Premium
Specs
EPA Classification: Small SUV 4WD
Gross Traction Battery Capacity (kWh): 17.8
Engine Order Code:
Engine Type: Gas/Electric I-4
Displacement: 2.5 L/152
Fuel System: Gasoline Direct Injection
SAE Net Horsepower @ RPM: 323 @ 6000
SAE Net Torque @ RPM: 369 @ 4000
Drivetrain: All Wheel Drive
Trans Order Code:
Trans Type: 8
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 5.26
Second Gear Ratio (:1): 3.30
Third Gear Ratio (:1): 2.22
Fourth Gear Ratio (:1): 1.71
Fifth Gear Ratio (:1): 1.30
Sixth Gear Ratio (:1): 1.00
Reverse Ratio (:1): 4.03
Final Drive Axle Ratio (:1): 4.44
Seventh Gear Ratio (:1): 0.82
Eighth Gear Ratio (:1): 0.63
Estimated Battery Range (mi): 26.1
Base Curb Weight (lbs): 5243
Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
Dead Weight Hitch - Max Tongue Wt. (lbs): 350
Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
Maximum Trailering Capacity (lbs): 3500
Suspension Type - Front: Double Wishbone
Suspension Type - Rear: Multi-Link
Suspension Type - Front (Cont.): Double Wishbone
Suspension Type - Rear (Cont.): Multi-Link
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.7
Rear Brake Rotor Diam x Thickness (in): 13.8
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: P275/45HR21
Rear Tire Size: P275/45HR21
Spare Tire Size: Compact
Front Wheel Size (in): 21 X 9.5
Rear Wheel Size (in): 21 X 9.5
Spare Wheel Size (in): Compact
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 41.2
Fuel Tank Capacity, Approx (gal): 18.5
Wheelbase (in): 122.8
Length, Overall (in): 201.6
Width, Max w/o mirrors (in): 77.6
Height, Overall (in): 68.7
Track Width, Front (in): 67.1
Track Width, Rear (in): 67.2
Liftover Height (in): 31
Cargo Area Length @ Floor to Seat 1 (in): 96
Cargo Area Length @ Floor to Seat 2 (in): 52.9
Cargo Area Width @ Beltline (in): 49.8
Cargo Box Width @ Wheelhousings (in): 43.7
Cargo Box (Area) Height (in): 30.1
Cargo Volume to Seat 1 (ft³): 74.2
Cargo Volume to Seat 2 (ft³): 40
Cargo Volume to Seat 3 (ft³): 14.9
Passenger Capacity: 7
Passenger Volume (ft³): 141.6
Front Head Room (in): 39.6
Front Leg Room (in): 41.7
Front Shoulder Room (in): 57.2
Front Hip Room (in): 56.2
Second Head Room (in): 38.4
Second Leg Room (in): 39.4
Second Shoulder Room (in): 58.1
Second Hip Room (in): 55.5
Third Head Room (in): 36.8
Third Leg Room (in): 30.4
Third Shoulder Room (in): 53.3
Third Hip Room (in): 43.7
Vehicle Name: Mazda CX-90 PHEV
Body Style: i-ACTIV AWD Sport Utility
Pricing
This model has 3 different trims.
MSRP
$57,450
Invoice
$56,014
Description
2.5 L/152, 323 @ 6000, Automatic w/OD
Fuel Economy
This model has 3 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
2.5 L/152, 323 @ 6000, Automatic w/OD
