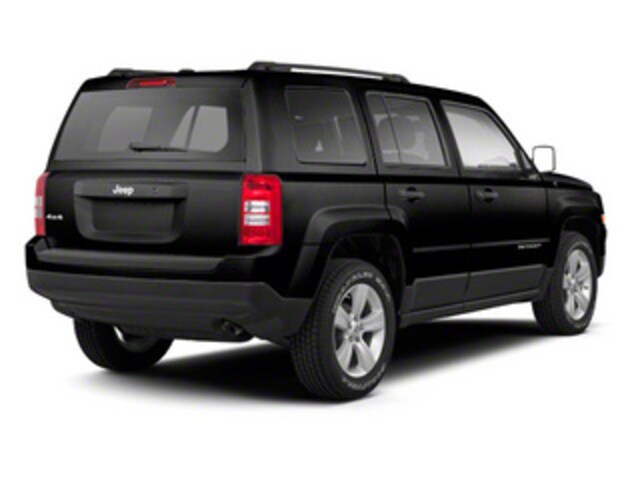

2010 Jeep Patriot
$15,365 - $24,550Starting MSRP
Brilliant Black Crystal Pearl
Model Highlights
Fuel Economy
25 MPG Comb.
Transmission
Manual
Body Type
SUV
Seatings
5 Seats
Overview
The Patriot shares much of its mechanical components with both the Jeep Compass and the Dodge Caliber, including a layout that's much more car-like than any of Jeep's larger models. With a MacPherson strut front suspension and rear multi-link...
What’s new in the 2010 model?
For 2010, Jeep's boxy compact returns with a few minor changes. The Sport 4x2 can now be paired with a 5-speed manual transmission and active head ...
Looking for alternatives to the Jeep Patriot?
Start Comparing NowColors
Exterior
Brilliant Black Crystal Pearl
Blackberry Pearl
Deep Water Blue Pearl
DK Charcoal Pearl
Natural Green Pearl
Optic Green Metallic
Sunburst Orange Pearl
Inferno Red Crystal Pearl
Bright Silver Metallic
Light Sandstone Metallic
Stone White
Specs
EPA Classification: 4WD Sport Utility Vehicles
Engine Order Code: ED3
Engine Type: Gas I4
Displacement: 2.4L/144
Fuel System: SMPI
SAE Net Horsepower @ RPM: 172 @ 6000
SAE Net Torque @ RPM: 165 @ 4400
Drivetrain: 4-Wheel Drive
Trans Order Code: DD7
Trans Type: 5
Trans Description Cont.: Manual
Trans Description Cont. Again:
First Gear Ratio (:1): 3.77
Second Gear Ratio (:1): 2.16
Third Gear Ratio (:1): 1.41
Fourth Gear Ratio (:1): 1.03
Fifth Gear Ratio (:1): 0.72
Sixth Gear Ratio (:1):
Reverse Ratio (:1): 3.42
Clutch Size (in): - TBD -
Final Drive Axle Ratio (:1): 4.12
Transfer Case Gear Ratio (:1), High: 1.00
Transfer Case Gear Ratio (:1), Low: - TBD -
Fuel Economy Est-Combined (MPG): 25
EPA Fuel Economy Est - City (MPG): 23
EPA Fuel Economy Est - Hwy (MPG): 28
Cold Cranking Amps @ 0° F (Primary): 525
Maximum Alternator Capacity (amps): 120
Total Cooling System Capacity (qts): 7.2
Base Curb Weight (lbs): 3245
Dead Weight Hitch - Max Trailer Wt. (lbs): 1000
Dead Weight Hitch - Max Tongue Wt. (lbs): 100
Wt Distributing Hitch - Max Trailer Wt. (lbs): 1000
Wt Distributing Hitch - Max Tongue Wt. (lbs): 150
Suspension Type - Front: MacPherson Strut
Suspension Type - Rear: Multi-link
Suspension Type - Front (Cont.): Stabilizer bar
Suspension Type - Rear (Cont.): Stabilizer bar
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): - TBD -
Stabilizer Bar Diameter - Rear (in): - TBD -
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 11.5 x 1.0
Rear Brake Rotor Diam x Thickness (in): 10.3 x 0.4
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: TTU
Rear Tire Order Code: TTU
Spare Tire Order Code: TBC
Front Tire Size: P215/60R17
Rear Tire Size: P215/60R17
Spare Tire Size: Compact
Front Wheel Size (in): 17 x 6.5
Rear Wheel Size (in): 17 x 6.5
Spare Wheel Size (in): Compact
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Pwr rack & pinion
Steering Ratio (:1), Overall: 16.4
Lock to Lock Turns (Steering): 2.88
Turning Diameter - Curb to Curb (ft): 35.6
Turning Diameter - Wall to Wall (ft): - TBD -
Fuel Tank Capacity, Approx (gal): 13.5
Wheelbase (in): 103.7
Length, Overall (in): 173.6
Width, Max w/o mirrors (in): 69.1
Height, Overall (in): 65.7
Track Width, Front (in): 59.8
Track Width, Rear (in): 59.8
Min Ground Clearance (in): 8.1
Rear Door Opening Height (in): 27.4
Rear Door Opening Width (in): 45.1
Liftover Height (in): 30.7
Cargo Area Length @ Floor to Seat 1 (in): - TBD -
Cargo Area Length @ Floor to Seat 2 (in): - TBD -
Cargo Area Length @ Floor to Seat 3 (in):
Cargo Area Width @ Beltline (in): - TBD -
Cargo Box Width @ Wheelhousings (in): 38.0
Cargo Box (Area) Height (in): - TBD -
Cargo Volume to Seat 1 (ft³): 54.2
Cargo Volume to Seat 2 (ft³): 23.0
Cargo Volume to Seat 3 (ft³):
Passenger Capacity: 5
Passenger Volume (ft³): 101.7
Front Head Room (in): 41.0
Front Leg Room (in): 40.6
Front Shoulder Room (in): 54.6
Front Hip Room (in): 52.3
Second Head Room (in): 39.9
Second Leg Room (in): 39.4
Second Shoulder Room (in): 54.0
Second Hip Room (in): 51.0
Vehicle Name: Jeep Patriot
Body Style: Sport Utility
Tons/yr of CO2 Emissions @ 15K mi/year: 7.5
EPA Greenhouse Gas Score: 7
Pricing
This model has 8 different trims.
MSRP
$24,550
Invoice
$23,647
Description
2.4L/144, 172 @ 6000, Manual
Fuel Economy
This model has 8 different trims.
City
23 MPG
Hwy
28 MPG
Combined
25 MPG
Description
2.4L/144, 172 @ 6000, Manual
