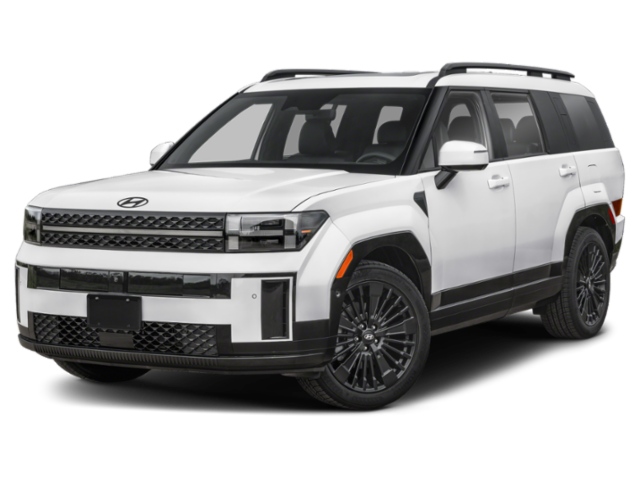

2025 Hyundai Santa Fe Hybrid
$37,800 - $49,650Starting MSRP

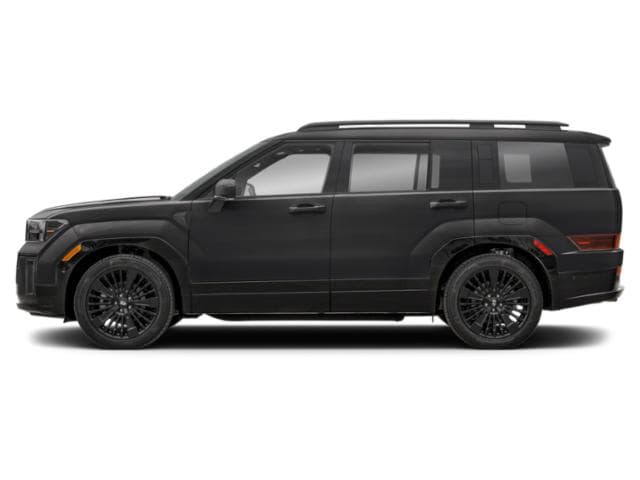

Phantom Black
Model Highlights
Fuel Economy
34 MPG Comb.
Transmission
Automatic w/OD
Body Type
SUV
Seatings
6 Seats
Overview
The 2025 Santa Fe is powered by a 2.5L turbocharged 4-cylinder making 277 horsepower. With power equivalent to or better than many of the V6 engines in its class, the Santa Fe returns great fuel economy while also offering plenty of torque for...
Build Your Own 2025 Hyundai Santa Fe Hybrid
What’s new in the 2025 model?
After a redesign in 2024 the Santa Fe and Santa Fe Hybrid carryover with minimal changes for 2025.
Looking for alternatives to the Hyundai Santa Fe Hybrid?
Start Comparing NowColors
Exterior

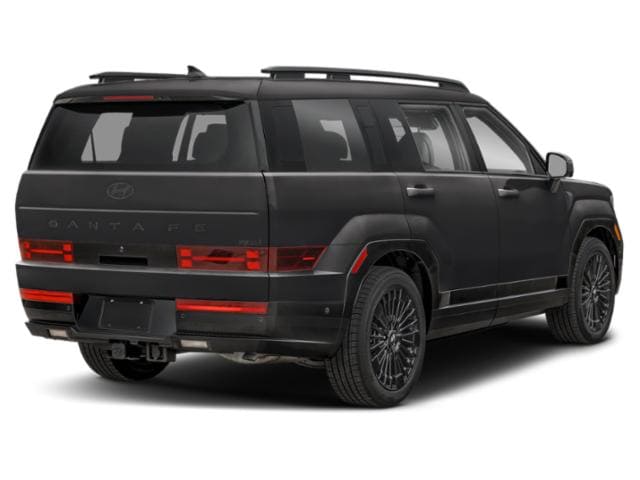

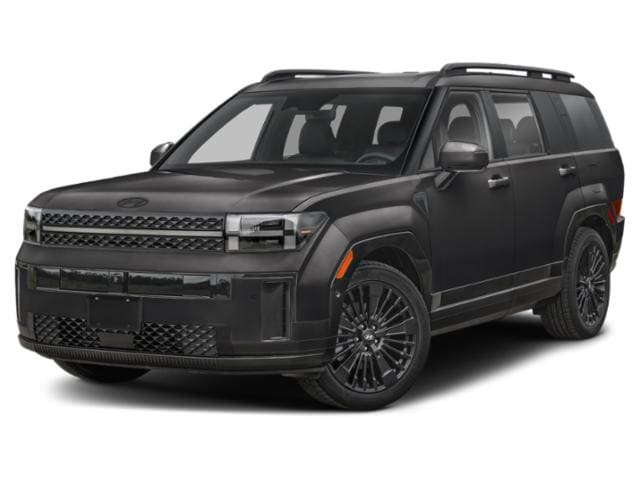

Phantom Black
Atlantis Blue
Earthy Brass Matte
Ecotronic Gray
Ecotronic Gray Matte
Hampton Gray
Rockwood Green
Terracotta Orange
Ultimate Red
Shimmering Silver
Serenity White
Specs
EPA Classification: Small SUV 4WD
Gross Traction Battery Capacity (kWh): 1.5
Engine Order Code:
Engine Type: Intercooled Turbo Gas/Electric I-4
Displacement: 1.6 L/98
Fuel System: Gasoline Direct Injection
SAE Net Horsepower @ RPM: 231 @ 5500
SAE Net Torque @ RPM: 271
Drivetrain: All Wheel Drive
Trans Order Code:
Trans Type: 6
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.64
Second Gear Ratio (:1): 2.83
Third Gear Ratio (:1): 1.84
Fourth Gear Ratio (:1): 1.39
Fifth Gear Ratio (:1): 1.00
Sixth Gear Ratio (:1): 0.77
Reverse Ratio (:1): 3.38
Final Drive Axle Ratio (:1): 3.51
Fuel Economy Est-Combined (MPG): 34 (2024)
EPA Fuel Economy Est - City (MPG): 35 (2024)
EPA Fuel Economy Est - Hwy (MPG): 34 (2024)
Base Curb Weight (lbs): 4575
Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
Dead Weight Hitch - Max Tongue Wt. (lbs): 200
Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
Wt Distributing Hitch - Max Tongue Wt. (lbs): 200
Maximum Trailering Capacity (lbs): 2000
Suspension Type - Front: Strut
Suspension Type - Rear: Multi-Link
Suspension Type - Front (Cont.): Strut
Suspension Type - Rear (Cont.): Multi-Link
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 12.8
Rear Brake Rotor Diam x Thickness (in): 12.8
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: P255/45HR20
Rear Tire Size: P255/45HR20
Spare Tire Size:
Front Wheel Size (in): 20 X 8.5
Rear Wheel Size (in): 20 X 8.5
Spare Wheel Size (in):
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material:
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 37.9
Fuel Tank Capacity, Approx (gal): 17.7
Wheelbase (in): 110.8
Length, Overall (in): 190.2
Width, Max w/o mirrors (in): 74.8
Height, Overall (in): 69.7
Track Width, Front (in): 64.4
Track Width, Rear (in): 64.8
Min Ground Clearance (in): 7
Cargo Volume to Seat 1 (ft³): 79.6
Cargo Volume to Seat 2 (ft³): 40.5
Cargo Volume to Seat 3 (ft³): 14.6
Passenger Capacity: 6
Passenger Volume (ft³): 151
Front Head Room (in): 40.2
Front Leg Room (in): 44.4
Front Shoulder Room (in): 59.5
Front Hip Room (in): 56.5
Second Head Room (in): 39.6
Second Leg Room (in): 41.5
Second Shoulder Room (in): 58.1
Second Hip Room (in): 54.9
Third Head Room (in): 37.7
Third Leg Room (in): 30
Third Shoulder Room (in): 53.5
Third Hip Room (in): 42.7
Vehicle Name: Hyundai Santa Fe Hybrid
Body Style: Sport Utility
Pricing
This model has 6 different trims.
MSRP
$49,650
Invoice
$47,963
Description
1.6 L/98, 231 @ 5500, Automatic w/OD
Fuel Economy
This model has 6 different trims.
City
35 MPG
Hwy
34 MPG
Combined
34 MPG
Description
1.6 L/98, 231 @ 5500, Automatic w/OD
