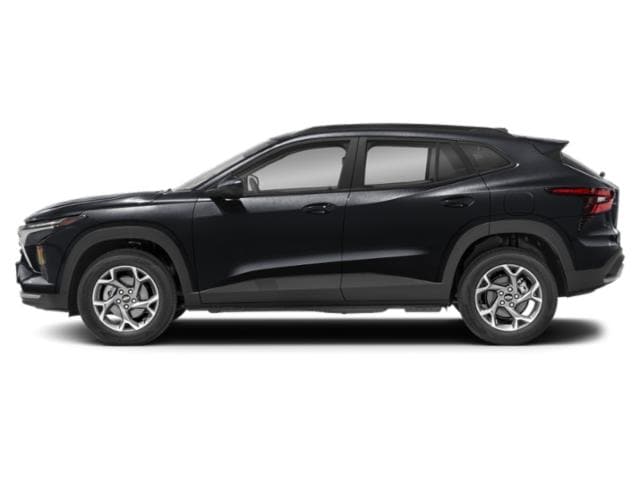

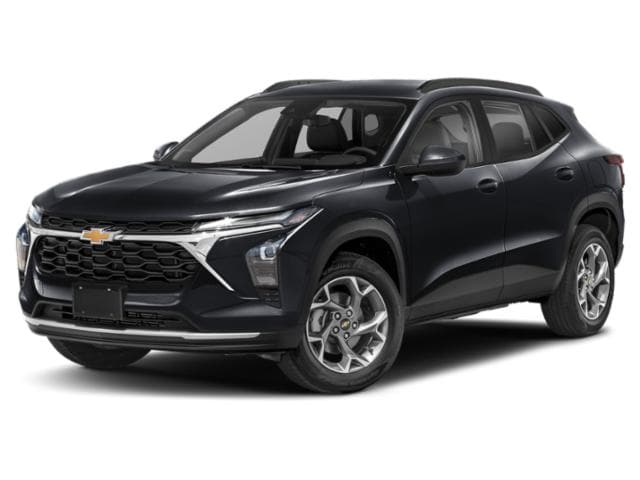

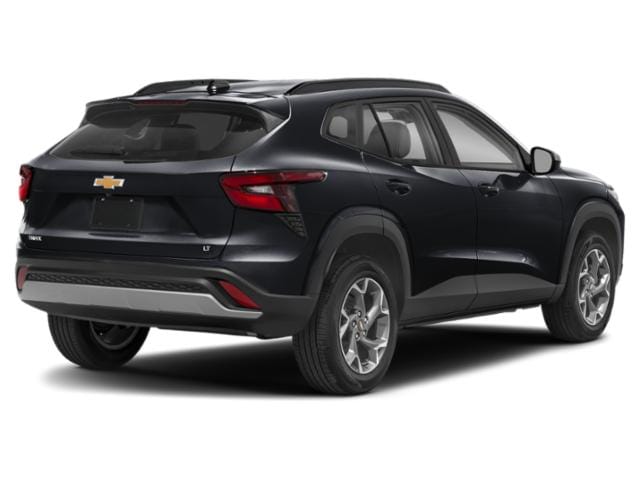

2025 Chevrolet Trax
$20,500 - $24,500Starting MSRP
Mosaic Black Metallic
Model Highlights
Fuel Economy
30 MPG Comb.
Transmission
Automatic
Body Type
SUV
Seatings
5 Seats
Overview
There is only one engine and transmission choice available for the 2025 Trax, but Chevrolet has chosen the drivetrain wisely. The Trax utilizes an extremely fuel-efficient 1.2L 3-cylinder turbocharged engine. Despite its diminutive size, this...
Build Your Own 2025 Chevrolet Trax
What’s new in the 2025 model?
The Chevrolet Trax was redesigned in 2024 and carries over with minimal changes for 2025.
Looking for alternatives to the Chevrolet Trax?
Start Comparing NowColors
Exterior
Mosaic Black Metallic
Marina Blue Metallic
Sterling Gray Metallic
Crimson Metallic

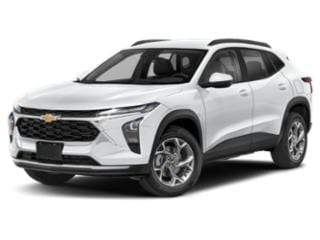

Summit White
Nitro Yellow Metallic
Specs
EPA Classification: Small Sport Utility Vehicle
Engine Order Code: LBP
Engine Type: Turbocharged Gas 3-Cyl
Displacement: 1.2L/- TBD -
Fuel System: Direct Injection
SAE Net Horsepower @ RPM: 137 @ 5000
SAE Net Torque @ RPM: 162 @ 2500
Drivetrain: Front Wheel Drive
Trans Order Code: MNH
Trans Type: 6
Trans Description Cont.: Automatic
Trans Description Cont. Again:
First Gear Ratio (:1): 4.58
Second Gear Ratio (:1): 2.96
Third Gear Ratio (:1): 1.91
Fourth Gear Ratio (:1): 1.44
Fifth Gear Ratio (:1): 1.00
Sixth Gear Ratio (:1): 0.74
Reverse Ratio (:1): 2.94
Clutch Size (in):
Final Drive Axle Ratio (:1): 3.50
Transfer Case Gear Ratio (:1), High:
Transfer Case Gear Ratio (:1), Low:
Fuel Economy Est-Combined (MPG): 30
EPA Fuel Economy Est - City (MPG): 28
EPA Fuel Economy Est - Hwy (MPG): 32
Cold Cranking Amps @ 0° F (Primary): 760
Maximum Alternator Capacity (amps): 130
Total Cooling System Capacity (qts): - TBD -
Base Curb Weight (lbs): 3040
Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
Suspension Type - Front: MacPherson Strut
Suspension Type - Rear: Compound Crank
Suspension Type - Front (Cont.):
Suspension Type - Rear (Cont.):
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): - TBD -
Stabilizer Bar Diameter - Rear (in): - TBD -
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): - TBD -
Rear Brake Rotor Diam x Thickness (in): - TBD -
Drum - Rear (Yes or ): - TBD -
Rear Drum Diam x Width (in): - TBD -
Front Tire Order Code: RH3
Rear Tire Order Code: RH3
Spare Tire Order Code: ZDC
Front Tire Size: 245/45R19
Rear Tire Size: 245/45R19
Spare Tire Size: Compact
Front Wheel Size (in): 19 x - TBD -
Rear Wheel Size (in): 19 x - TBD -
Spare Wheel Size (in): 16 x - TBD -
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Electric Rack & Pinion
Steering Ratio (:1), Overall: - TBD -
Lock to Lock Turns (Steering): - TBD -
Turning Diameter - Curb to Curb (ft): - TBD -
Turning Diameter - Wall to Wall (ft): - TBD -
Fuel Tank Capacity, Approx (gal): 13.2
Wheelbase (in): 106
Length, Overall (in): 178.6
Width, Max w/o mirrors (in): 71.8
Height, Overall (in): 61.7
Track Width, Front (in): 61.5
Track Width, Rear (in): 62.13
Min Ground Clearance (in): 7.3
Rear Door Opening Height (in): - TBD -
Rear Door Opening Width (in): - TBD -
Liftover Height (in): - TBD -
Cargo Area Length @ Floor to Seat 1 (in): - TBD -
Cargo Area Length @ Floor to Seat 2 (in): - TBD -
Cargo Area Length @ Floor to Seat 3 (in):
Cargo Area Width @ Beltline (in): - TBD -
Cargo Box Width @ Wheelhousings (in): - TBD -
Cargo Box (Area) Height (in): - TBD -
Cargo Volume to Seat 1 (ft³): 54.1
Cargo Volume to Seat 2 (ft³): 25.6
Cargo Volume to Seat 3 (ft³):
Passenger Capacity: 5
Passenger Volume (ft³): 98
Front Head Room (in): 39.6
Second Head Room (in): 38.1
Front Leg Room (in): 41.9
Second Leg Room (in): 38.7
Front Shoulder Room (in): 55.7
Second Shoulder Room (in): 54.3
Front Hip Room (in): 52.1
Second Hip Room (in): 45.8
Vehicle Name: Chevrolet Trax
Body Style: Sport Utility Vehicle
EPA Greenhouse Gas Score: 6
Tons/yr of CO2 Emissions @ 15K mi/year: 5.9
Pricing
This model has 5 different trims.
MSRP
$24,500
Invoice
$23,618
Description
1.2L/- TBD -, 137 @ 5000, Automatic
Fuel Economy
This model has 5 different trims.
City
28 MPG
Hwy
32 MPG
Combined
30 MPG
Description
1.2L/- TBD -, 137 @ 5000, Automatic
